iReliev Pain Management System

Description

TENS (Transcutaneous Electrical Nerve Stimulator) is a type of electrotherapy equipment that works by sending small electrical pulses through the skin via ten unit electrodes to the underlying peripheral nerves. TENS is thought to work in two ways. First, “high frequency” continuous, mild, electrical activity blocks the pain signal traveling to the brain. Brain cells perceive pain. If the pain signal does not get through to the brain, the pain is not “felt.” The second way is by stimulating the body’s own natural pain-control mechanism. “Low frequency” or short bursts of mild electrical activity cause the body to release its own pain easers called beta endorphins. TENS have been available to medical professionals for over 30 years, and now the iReliev Class II FDA registered medical device is available without a prescription because it is so easy and safe to use. The iReliev Pain Management System is an over-the-counter (OTC) TENS device that provides prescription-strength pain relief associated with sore and aching muscles in the upper and lower extremities due to strain from sports or exercise, normal household and work activities. This easy-to-use device comes equipped with eight preset programs allowing you to customize your therapy and target your pain. Frequently Asked Questions

• How long will I have to use my iReliev device? There is no limit on how long or how often to use the iReliev device. Some people choose to wear it all day, and some for short periods of time to manage their pain. Some people use the device for short term (acute) injuries such as strains and sprains and others use the device for long-term (chronic) pain such as back pain that persists. There are no known long term side effects from using the unit and it is non-addicting.
• How long do the electrode pads last? The pads are long-lasting, but the amount of times that they can be used will vary based on how well they are taken care of, the skin-type of the person who is using them, and the environmental conditions. The typical person will get at least 2 weeks of use. When the pads do not stick anymore, they are to be thrown away and replaced with new pads. Product Features
• Dual Channel Capability: Up to 4 Electrodes for Large Pain Coverage or Multiple Body Parts. Control each channel independently.
• 8 Pre-Programmed Therapy Modes: P1 thru P8 is uniquely designed to treat your pain. Customize your therapy with our Pre-programmed modes that deal with both acute and chronic pain differently.
• Digital LCD Display: The LCD screen is a clear display that shows the operating status. The feature indicated includes Channel 1 intensity (upper left), Channel 2 Intensity (Upper Right), Program Mode (Lower Left P1-P8), Lock Feature (Upper Center Left) Battery Voltage Indicator (Upper Center Right) and Timer (Lower right)
• Low Battery Indicator: Symbol turns on when the battery voltage is low so there is no guess work involved in changing the batteries. Batteries last up to 150 Hours on average however this may vary greatly depending on if you use two output channels or only one channel for smaller body parts.
• Lock Out Safety Feature: Built in safety feature ensures you do not accidentally switch a setting or adjust the intensity. This can be initiated by holding the on/ Button and the same time as the off/- button. Pad lock icon will be displayed in Upper Center of LCD Screen.
• 25 Power Levels: The power levels are indicated by each respective channel in the upper left or right of the LCD screen. The output intensity can be adjusted from 0-25 by simply hitting the on/ button or off/- button. You will find the output intensity unmatched in the industry with 80mA output. Technical Details
  • • Channel: Dual, isolated between channels



• Pulse Amplitude:
• 0-80 mA peak into 500 Ω load each channel
• Pulse Rate:
• As pre-programming operation mode
• Pulse Width:
• As pre-programming operation mode
• Software Ramp up Feature:
• Pulse width ramp up when change mode.
• Timer:
• 5-60 min. selectable
• Modes:
• 8 program mode options
• Waveform:
• Symmetrical Bi-Phasic square pulse
• Power Source:
• (3) AAA /4.5 Volt Batteries

• Warranty:

One-Year manufacturer warranty

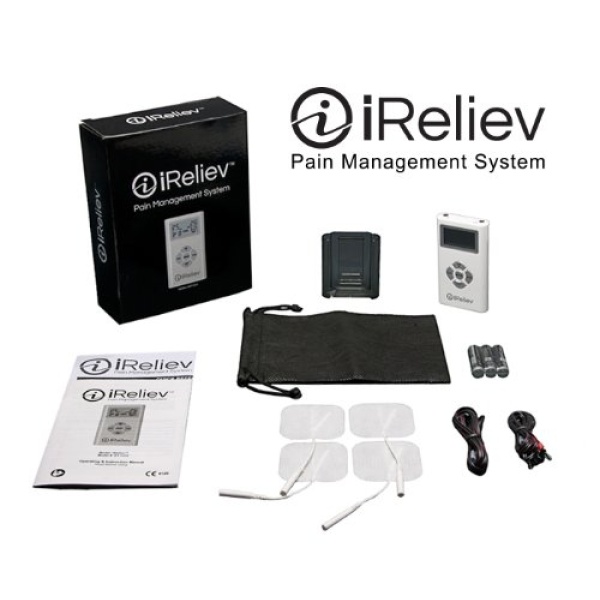

• Includes: iReliev unit, 4 conductive pads (electrodes), 1 connecting cable (leadwire), 3 AAA batteries, clip holder, storage bag,
• Comprehensive Operator’s Manual We carry additional electrodes that are suggested, as a pair tends to last for 5-10 sessions. Ships via Standard Delivery. Do not use the iReliev if any of the following apply to you: Epilepsy, Pregnancy, Cancer, Feverish conditions, Contagious diseases, Skin sensory disorders (such as nerve damage), Heart disease or disorders, Children under the age of 18, Undiagnosed pain syndromes, Phlebitis, Thrombosis, Varicose Veins, (Swollen or painful veins), Using a Cardiac/phrenic pacemaker, Monitoring devices, Other electrical bodily devices. All information contained herein is for educational purposes only. No health claims are intended or inferred. Statements made on this website have not been evaluated or approved by the U.S. Food and Drug Administration. If you have a medical condition, please consult with your healthcare professional.
